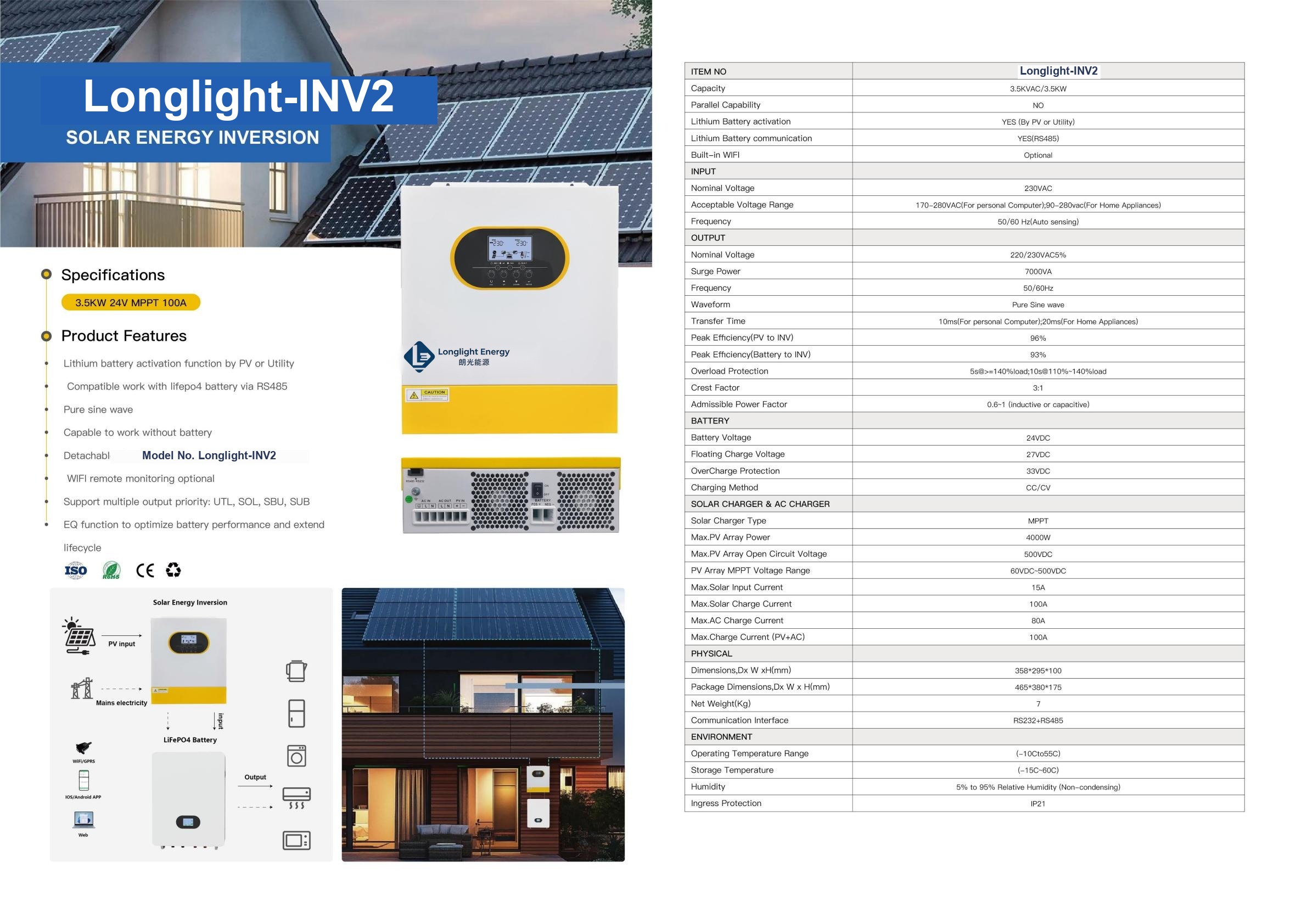

Location: SL-INV2 Hybrid Solar Inverter 3.5kW 24V
[Back]
Details
LiFePO4 activation by PV or utility, RS485 battery communication, optional Wi-Fi monitoring.
| SL-INV2 Hybrid Solar Inverter | |||
|---|---|---|---|
| ITEM NO | SL-INV2 | Capacity | 3.5kVA / 3.5kW |
| Parallel Capability | NO | Lithium Battery Activation | YES (By PV or Utility) |
| Lithium Battery Communication | YES (RS485) | Built-in WiFi | Optional |
| INPUT | |||
| Nominal Voltage | 230VAC | Acceptable Voltage Range | 170–280VAC (computer); 90–280VAC (home appliances) |
| Frequency | 50/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| Nominal Voltage | 220/230VAC±5% | Surge Power | 7000VA |
| Frequency | 50/60Hz | Waveform | Pure Sine wave |
| Transfer Time | 10ms (computer); 20ms (home appliances) | Peak Efficiency (PV to INV) | 96% |
| Peak Efficiency (Battery to INV) | 93% | Overload Protection | 5s @ ≥140% load; 10s @ 110%–140% load |
| Crest Factor | 3:1 | Admissible Power Factor | 0.6–1 (inductive or capacitive) |
| BATTERY | |||
| Battery Voltage | 24VDC | Floating Charge Voltage | 27VDC |
| OverCharge Protection | 33VDC | Charging Method | CC/CV |
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger Type | MPPT | Max. PV Array Power | 4000W |
| Max. PV Array Open Circuit Voltage | 500VDC | PV Array MPPT Voltage Range | 60VDC–500VDC |
| Max. Solar Input Current | 15A | Max. Solar Charge Current | 100A |
| Max. AC Charge Current | 80A | Max. Charge Current (PV+AC) | 100A |
| PHYSICAL | |||
| Dimensions, D×W×H (mm) | 358×295×100 | Package Dimensions, D×W×H (mm) | 465×380×175 |
| Net Weight (kg) | 7 | Communication Interface | RS232 + RS485 |
| ENVIRONMENT | |||
| Operating Temperature Range | −10℃ to 55℃ | Storage Temperature | −15℃ to 60℃ |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | Ingress Protection | IP21 |
